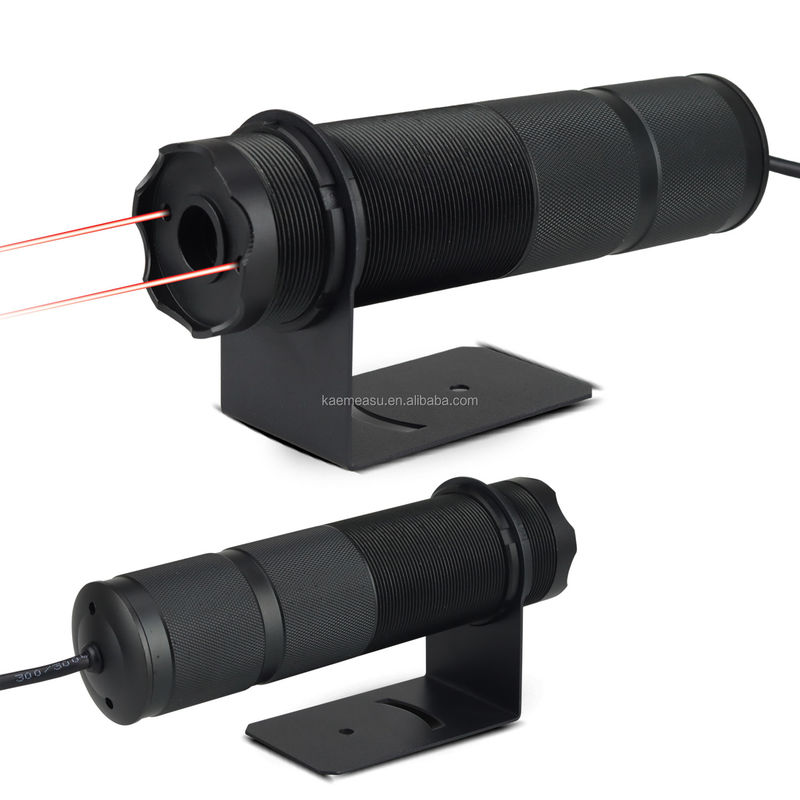

Aluminium Alloy Shell Non Contact Infrared Temperature Sensor 4-20mA

Aluminium Alloy Shell Non Contact Infrared Temperature Sensor 4-20mA

Aluminium Alloy Shell Non Contact Temperature Sensor

Non Contact Temperature Sensor 4-20mA

non contact infrared temperature sensor 4-20mA

Place of Origin:

China

Brand Name:

Kaemeasu

Model Number:

KM-SIT

Contact Us
Request A Quote
Product Details
Warranty:
1 Year
Customized Support:
OEM, ODM
Certificate:
CE
Environmental Temperature:
0~50℃
Storage Temperature:
-20~50℃
Repeatability:
10-95%
Shell Material:
Aluminium Alloy
Standard Wire Length:
2m/can Be Customized
Port:
YanTian
Payment & Shipping Terms
Price
$181.90/pieces 1-999 pieces
Supply Ability
300 Piece/Pieces per Week
Product Description
OEM Industrial Infrared Pyrometer Analog Non Contact Temperature Sensor -20-50C 2m
Product Description
Infrared Temperature Transmitter
Aluminium Alloy Shell Non Contact Infrared Temperature Sensor 4-20mA 0
▲High precision
▲High optical resolution ratio
▲Firm metal shell
▲Wide temperature range:
-50~300
-50℃~600
-50℃~1200℃
-50℃~1800℃

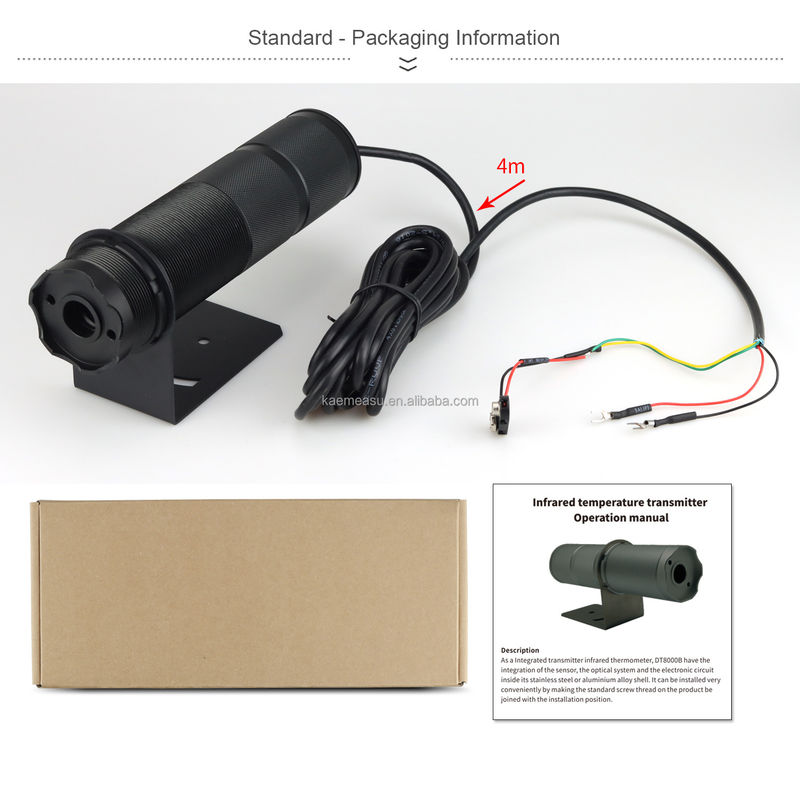

Package

Standard package

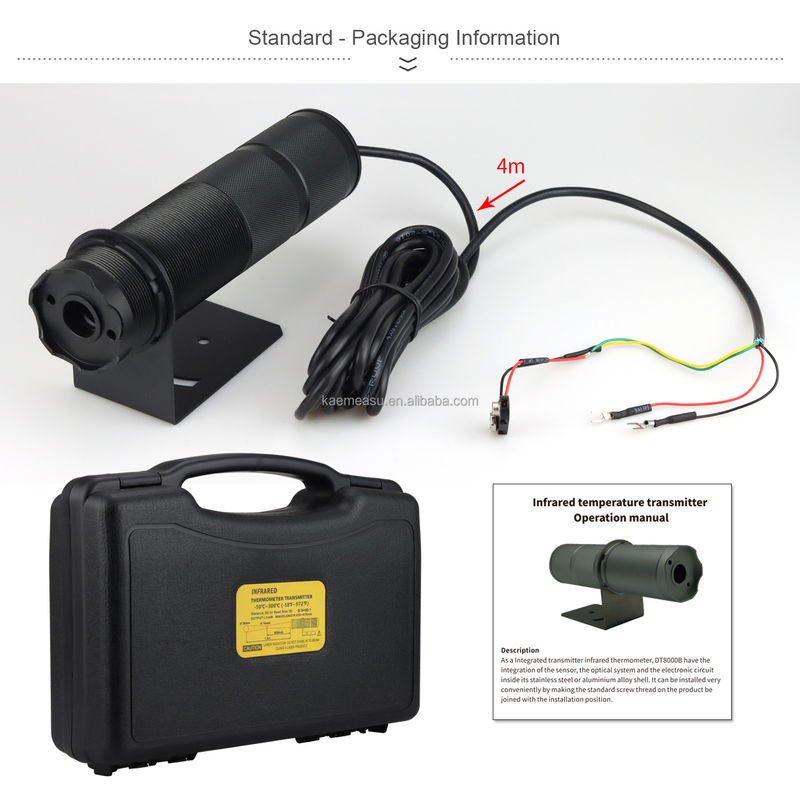

Suitcase packing(additional purchase)
Aluminium Alloy Shell Non Contact Infrared Temperature Sensor 4-20mA 1
Aluminium Alloy Shell Non Contact Infrared Temperature Sensor 4-20mA 2
The principle of temperature measurement by infrared:
Any object transmits the infrared radiation, and the radiation intensity varies with temperature. Infrared temperature measurement uses thermal radiation within the range of wavelength 8-14um.
The infrared thermometer is a kind of hot electron-sensor which can receive the infrared radiation
and transform it to a measurable electric signal.
Main assemblies: Lens Spectrum filter. Detector Electronic circuit(Amplifier/linearization/signal processing)
Aluminium Alloy Shell Non Contact Infrared Temperature Sensor 4-20mA 3
Model
KM-SIT300BS
KM-SIT600BS
KM-SIT1200BS
KM-SIT1800BS
Range
-50~300℃
-50~600℃
-50~1200℃
-50~1800℃
Accuracy
≥100℃ ±2%/≤100℃ ±2℃



Object distance ratio
50 : 1



Laser target
Dual laser



Spectral range
8-14μm



Response time
500ms



Emissivity(EMS)
0.95



Repeatability
±1% or ±1℃



Power supply
DC 9~24V



Analog output
RT-A: 4~20mA



Max current
50mA



Protection level
IP54



Standard wire length
4m (can be customized)




Power, digital output and analog output are isolated and do not interfere with each other






With CE approval and protection against electromagnetic disturbance for EU standard





Aluminium Alloy Shell Non Contact Infrared Temperature Sensor 4-20mA 4
Aluminium Alloy Shell Non Contact Infrared Temperature Sensor 4-20mA 5
Aluminium Alloy Shell Non Contact Infrared Temperature Sensor 4-20mA 6
Aluminium Alloy Shell Non Contact Infrared Temperature Sensor 4-20mA 7
Aluminium Alloy Shell Non Contact Infrared Temperature Sensor 4-20mA 8
Aluminium Alloy Shell Non Contact Infrared Temperature Sensor 4-20mA 9
Aluminium Alloy Shell Non Contact Infrared Temperature Sensor 4-20mA 10
Aluminium Alloy Shell Non Contact Infrared Temperature Sensor 4-20mA 11
