Place of Origin:
China
Brand Name:
Kaemeasu
Model Number:
KM-TP

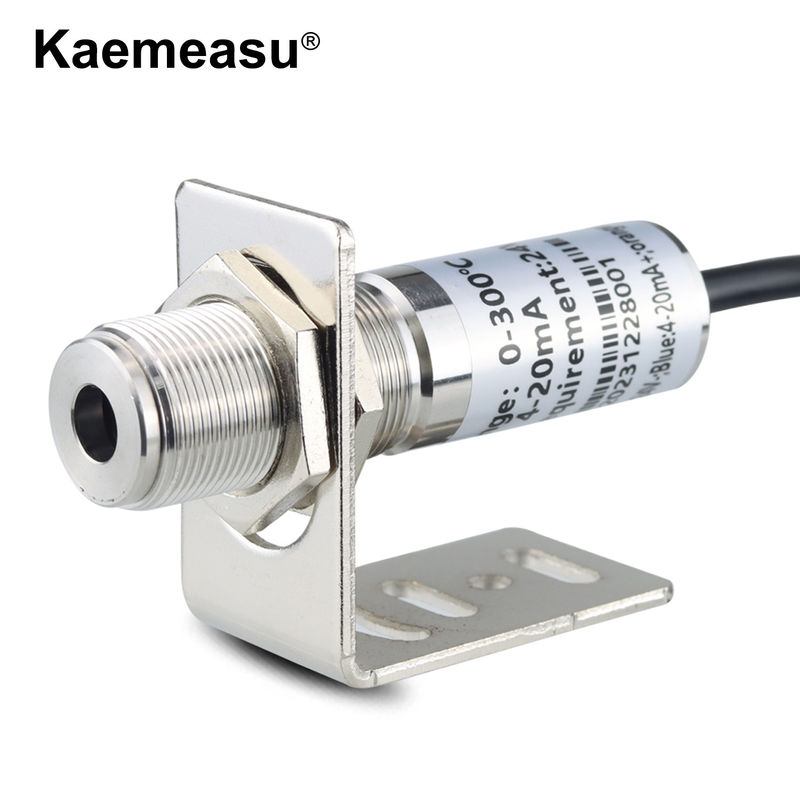

Non Contact Infrared Temperature Sensor
Model | KM-TP |
Accuracy | ≥100℃ ±1%/≤100℃ ±1℃ |
Object distance ratio | 20:1 |
Spectral range | 8-14μm |
Response time | 200ms |
Emissivity(EMS) | 0.95 |
Repeatability | ±0.5% or ±0.5℃ |
Power supply | DC 12~36V |
Analog output | 4~20mA/0-5V/0-10V/RS485 |
Max current | 50mA |
Protection level | IP65 (NEMA-4) |
Standard wire length | 2m (can be customized) |
Power, digital output and analog output are isolated and do not interfere with each other | |
With CE approval and protection against electromagnetic disturbance for EU standard |
