Name: kaemeasu Contactless Laser Infrared Temperature Sensor DC 9~24V Transmitter 304 Stainless For Industry -20~200℃
Brand: Shenzhen Kace Technology Co., Ltd.
SKU: KM-SIT200BC
Price: 70.10 USD
Availability: InStock

Home > products > Temperatures Meter >

kaemeasu Contactless Laser Infrared Temperature Sensor DC 9~24V Transmitter 304 Stainless For Industry -20~200℃

Industry Temperature Sensor

304 Stainless Temperature Sensor

DC 9~24V Temperature Sensor

Place of Origin:

China

Brand Name:

Kaemeasu

Certification:

CE/ROHS/FCC/PSE

Model Number:

KM-SIT200BC

Request A Quote

kaemeasu Contactless Laser Infrared Temperature Sensor DC 9~24V Transmitter 304 Stainless For Industry -20~200℃

Product Details

Range:

-20~200℃

Size Of Product/Package:

128*46*26mm / 185*85*55mm

Repeatability:

±1% Or ±1℃

Weight Of Product/Package:

200g / 270g

Emissivity(EMS):

0.95

Carton Regulation:

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Price

USD$65.1~USD$75.1 per pcs

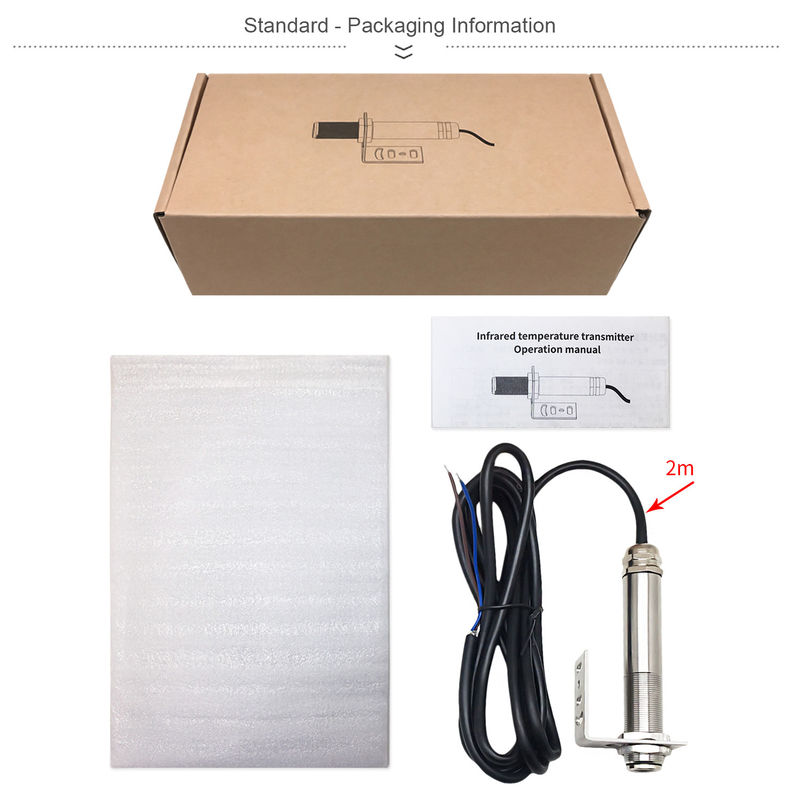

Packaging Details

1 x Transmitter
1 x User Manual
1 x Paper Box

Delivery Time

5-8 working days

Payment Terms

T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability

500 pieces per week

kaemeasu Temperature Laser Aiming Transmitter Non Contact Pyrometer Temperature Sensor -50~1200℃

Get Best Price

kaemeasu Temperature Transmitter 4~20mA Output Laser Pyrometer Temp Sensor -50~600℃

Get Best Price

kaemeasu 4-20mA Industrial Pyrometer Non Contact Infrared Temperature Sensor -50~300℃

Get Best Price

kaemeasu 4~20 mA Stainless Steel Transmitter Non Contact Infrared Temperature Sensor -20~600℃

Get Best Price

+86 13316431028

jerry@kaemeasu.com

Contact Now

Product Description

Non Contact Infrared Temperature Sensor with Laser Targeting -20~200℃ CE Certificate

Product Description

Infrared Temperature Transmitter

▲High precision

▲High optical resolution ratio

▲Firm metal shell

▲Wide temperature range:
-20°C~100℃/200℃/300℃/400℃/500℃/600℃

-50°C~100℃/200℃/300℃/400℃/500℃/600℃

The principle of temperature measurement by infrared:

Any object transmits the infrared radiation, and the radiation intensity varies with temperature. Infrared temperature measurement uses thermal radiation within the range of wavelength 8-14um.

The infrared thermometer is a kind of hot electron-sensor which can receive the infrared radiation

and transform it to a measurable electric signal.

Main assemblies:

◆Lens

◆Spectrum filter

◆Detector

◆Electronic circuit(Amplifier/linearization/signal processing)

Model	KM-SIT100/200/300/400/500/600BC	KM-SIT100/200/300/400/500/600BD
Range	-20~100/200/300/400/500/600℃	-50~100/200/300/400/500/600℃
Accuracy	≥100℃ ±2%/≤100℃ ±2℃
Object distance ratio	20 : 1
Spectral range	8-14μm
Response time	500ms
Emissivity(EMS)	0.95
Repeatability	±1% or ±1℃
Power supply	DC 9~24V
Analog output	RT-A: 4~20mA
Max current	50mA
Protection level	IP54
Standard wire length	2m (can be customized)
Power, digital output and analog output are isolated and do not interfere with each other
With CE approval and protection against electromagnetic disturbance for EU standard
