kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A

kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A

250V Insulation Resistance Tester

Place of Origin:

Guangdong, China

Brand Name:

kaemeasu

Certification:

CE/ROHS/FCC/PSE

Model Number:

KM-IR10A

Contact Us
Request A Quote
kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A
Product Details
Customized Support:
OEM, ODM
Size Of Product/Package:
175*110*70mm/170*70*205mm
Measuring Range:
2000MΩ
Weight Of Product/Package:
528g/927g
Testing Voltage:
AC 750V
Carton Regulation:
16 Pcs/carton-43*34*36cm-15kg
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
USD$54.8~USD$64.8 per pcs
Packaging Details
refer to the details
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
500 pieces per week
RELATED PRODUCTS
good price kaemesau Insulation Resistance Tester 1000V 2500V Overload Protection Digital Insulation Resistance Tester IR10B online

kaemesau Insulation Resistance Tester 1000V 2500V Overload Protection Digital Insulation Resistance Tester IR10B

Get Best Price
good price kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A online

kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A

Get Best Price
good price Kaemeasu 10C Auto Range Multimetro Smart Digita Voltage Meters NCV TRMS Diode Test Current Resistance Tester online Video

Kaemeasu 10C Auto Range Multimetro Smart Digita Voltage Meters NCV TRMS Diode Test Current Resistance Tester

Get Best Price
good price Kaemeasu 10D Smart Rotary Knob Multimeter Voltage Meters Detector Multimetro Smart Multimeter Digital Multimeters online Video

Kaemeasu 10D Smart Rotary Knob Multimeter Voltage Meters Detector Multimetro Smart Multimeter Digital Multimeters

Get Best Price
Contact Us
+86 13316431028
jerry@kaemeasu.com
Contact Now
Product Description



Product Overview

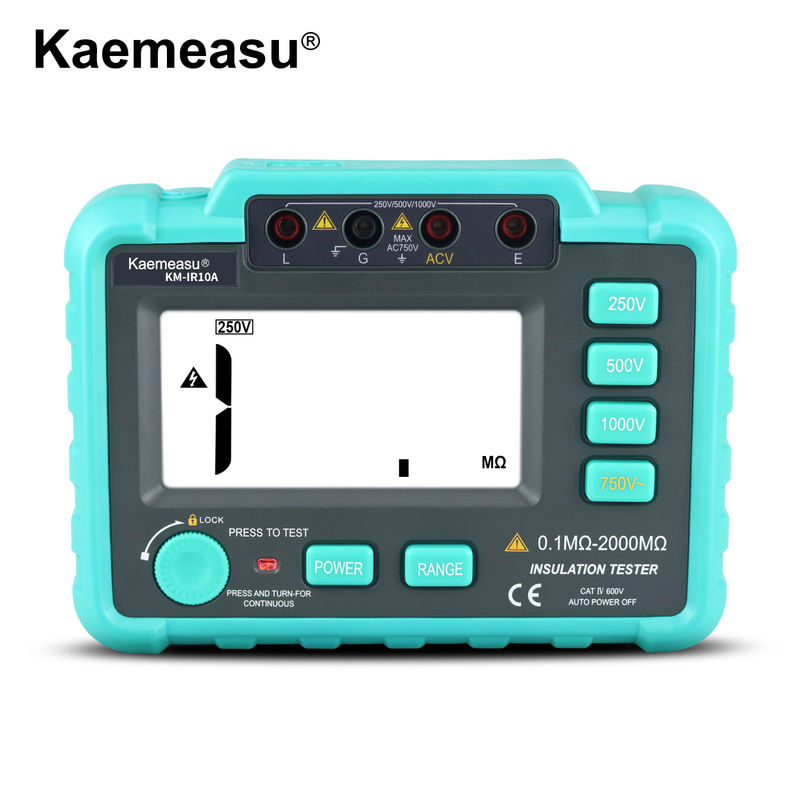

Insulation Resistance Tester(KM-IR10A)
High accuracy insulation resistance testers can be used on a wide range of electrical equipment, from motors and generators to transformers and switch gear.
kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 0
Max display
1999
AC750V measurement
√
Low voltage display
√
Alarm function
Red light on
Overload protection
√
Unit symbol display
√
Auto power off
√
kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 1
kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 2
AUTO Measurement
kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 3
Multiple Gear Selection
kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 4
LCD Backlight Screen
No
Item
Data
1
Output voltage
250V/500V/1000V
2
Short circuit current
＜1.6mA
3
Test current
250V(R=250kΩ) 1mA
500V(R=500kΩ) 1mA
1000V(R=1MΩ) 1mA
4
RANGE: Insulation resistance
250V : 0.1MΩ—20MΩ
500V : 0.1MΩ—50MΩ
1000V : 0.1MΩ—100MΩ
250V : 20MΩ—500MΩ
500V : 50MΩ—1000MΩ
1000V:100MΩ—2000MΩ
5
Median resistance
250V/500V : 2 MΩ
1000V: 5MΩ
6
Voltage measurement
AC750V
7
Hole plug position
Insulation resistance: L.E AC750V: ACV G
8
over range display
Highest count display '1'
9
Battery model
5#Battery LR6(1.5V)×8
kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 5kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 6kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 7kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 8kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 9
kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 10kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 6kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 12kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 13​kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 14

kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 15
kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 16
SALES AND SERVICE NETWORK
kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 17
kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A 18



FAQ


1.Q: Leading time for order?

A:1-3 days for sample order, 5-10 days for bulk order

2.Q: Shipment information?

A:Sample is shipped by UPS, DHL. Fedex,etc, takes 3-5 days. Bulk order can be shipped by air or by sea.

3.Q: What's your MOQ?

A:Without logo: No MOQ limit With logo: 300pcs.

4. Q:For Amazon seller.

A:We can ship to amazon warehouse directly, only need offer us Amazon lables, will handle all things.

5. Q:What is your diffuser warranty?

A:18 months warranty, longer than most of factories in China

6. Q:What is your defective rate?

A:We are offering full inspection, and our defective rate under 0.1%

7.Q: How to do if there is diffuser broken?

A:Just send us video or photos, will make replacement in your next shipment.

8.Q: OEM Service

A:Customization on diffuser and package box.

9. Q:What kind of Power adapter you can offer?

A:UK, Australia, European and American power adapters are available.
