Name: 04A New upgrade Anti burn 20000 Counts Bar Graph Display High Accuracy Electric Digital Multimeters
Brand: Shenzhen Kace Technology Co., Ltd.
SKU: KM-DM04A
Price: 164.00 USD
Availability: InStock

Home > products > Multimeter Tester >

04A New upgrade Anti burn 20000 Counts Bar Graph Display High Accuracy Electric Digital Multimeters

Electric Digital Multimeters

20000 Counts Digital Multimeters

High Accuracy Digital Multimeters

Place of Origin:

Guangdong, China

Brand Name:

kaemeasu

Model Number:

KM-DM04A

Request A Quote

04A New upgrade Anti burn 20000 Counts Bar Graph Display High Accuracy Electric Digital Multimeters

Product Details

Measuring Current Range:

200uA/2000uA/20mA/200mA/10A

Measuring Voltage Range:

AC750V / DC1000V

Measuring Resistance Range:

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

Measuring Capacitance Range:

20nF/200nF/2uF/20uF/200uF/2000uF

Measuring Inductance Range:

Operating Temperature:

0-40℃

Dimensions:

184*90*46mm

Feature:

Standard, Dustproof, Waterproof

Max. AC Voltage:

750 V

Max. DC Voltage:

1000 V

Max. AC Current:

10A

Max. DC Current:

10A

Parameters Measured:

DC Current, AC Voltage, Frequency, Temperature, DC Voltage, Duty Cycle, Capacitance, Continuity, Diode, Resistance, AC Current

Low Battery Indicator:

Yes

Certificate:

CE/RoHS/FCC

Type:

Auto Digital Multimeter

Color:

Grey

Counts:

20000 Counts

Package:

Box

Payment & Shipping Terms

Minimum Order Quantity

30 pieces

Price

CN¥299.06/pieces 30-299 pieces

kaemesau Insulation Resistance Tester 1000V 2500V Overload Protection Digital Insulation Resistance Tester IR10B

Get Best Price

kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A

Get Best Price

Video

Kaemeasu 10C Auto Range Multimetro Smart Digita Voltage Meters NCV TRMS Diode Test Current Resistance Tester

Get Best Price

Video

Kaemeasu 10D Smart Rotary Knob Multimeter Voltage Meters Detector Multimetro Smart Multimeter Digital Multimeters

Get Best Price

+86 13316431028

jerry@kaemeasu.com

Contact Now

Product Description

Customization Service

1. Send us logo or design file, we'll make effect picture for confirmation.

2. Sample production and confirmation.

3. Sample delivery and confirmation.

4. Mass production.

5. Finished product delivery.

Product Description

Specification
Current Range	AC/DC 200uA/2000uA/20mA/200mA/10A
Voltage Range	AC750V / DC1000V
Resistance Range	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Capacitance Range	60nF/600nF/6uF/60uF/600uF/6mF
Frequency(Hz)	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/20MHz

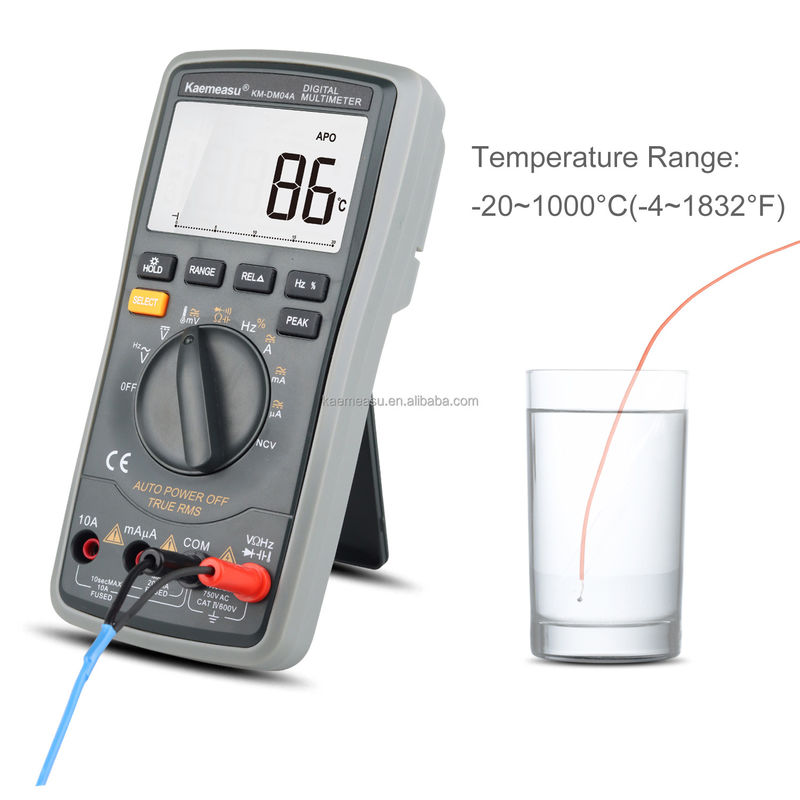

Temperature Range	-20~1000℃ (-4~1832)℉
Duty Cycle	0.1%~99%

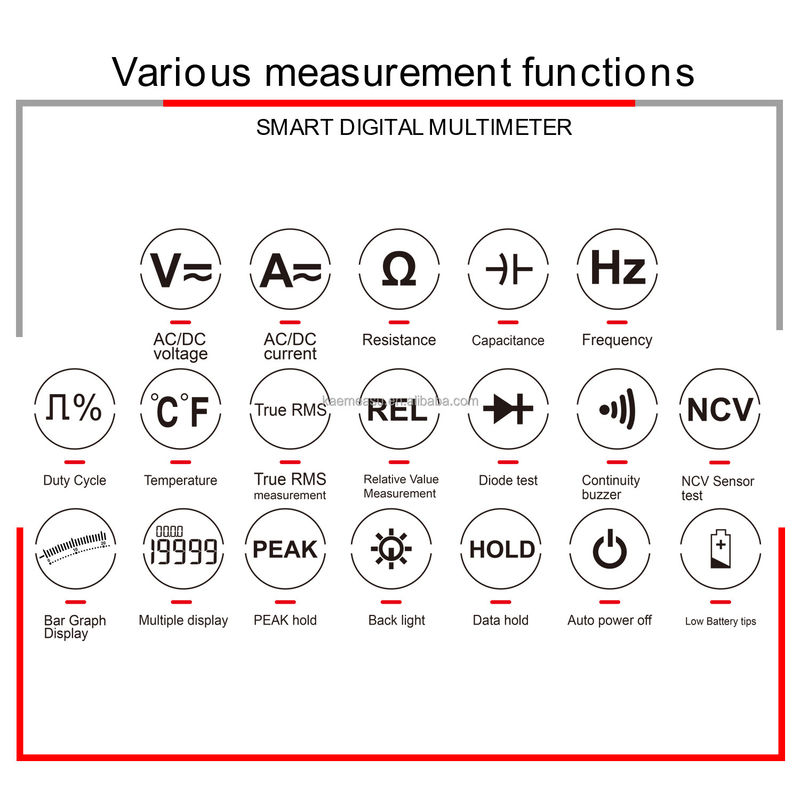

Special Function
Display Count	20000
Range Select	AUTO
Diode Test	√
True RMS	√
Continutity Buzzer	√
Relative Value	√
Peak Hold	√
Bar Graph Display	√
Multiple Display	√
Temperature Measuring	√
Backlight Manual/Automatic Shutdown	√
Data Hold	√
Battery Low Voltage Reminder	√
Auto Power Off	√

Look at ours

Packing and Logistics

Package Information
Product Size/Weight	184×90×46mm / 320g
Package Size/Weight	*21147cm / 500g*
Carton Information	*30 pcs/carton / 4333.542.5cm / 17kg*
Power Supply	1pcs 9v(6F22) battery

Company and Production Line

Shenzhen Kace Technology Co., Ltd. is a high-tech enterprise integrating R & D, production and sales services. Occupying an important position in the global measurement industry, the company is committed to providing more accurate, convenient and safer digital measurement instruments, meters and service support for global users.

Have a complete and scientific quality management system. Shenzhen Kace Technology Co., Ltd. has been recognized by the industry for its integrity, strength and product quality. Welcome friends from all walks of life to visit, guide and negotiate business.

Exhibition

Market Distribution

FAQ

1.Q： Leading time for order? A：1-3 days for sample order, 5-10 days for bulk order 2.Q： Shipment information? A：Sample is shipped by UPS, DHL. Fedex,etc, takes 3-5 days. Bulk order can be shipped by air or by sea. 3.Q： What's your MOQ? A：Without logo: No MOQ limited With logo: 300pcs. 4. Q：For Amazon seller. A：We can ship to amazon warehouse directly, only need offer us Amazon lables, will handle all things. 5. Q：What is your product warranty? A：1 year warranty, longer than most of factories in China 6. Q：What is your defective rate? A：We are offering full inspection, and our defective rate under 0.1% 7.Q： How to do if there is product broken? A：Just send us video or photos, will make replacement in your next shipment. 8.Q： OEM/ODM service A：We support to customize logo, color, manual, packing, ect. 9. Q：What kind of Power adapter you can offer? A：UK, Australia, European and American power adapters are available.

Buying Guidance: if you need more information,please contact me without hesitate! Contact: Herman TEL: 0086-0755-21031418 Mob / Whats app / Wechat:+86-15507517286 Skype/Vk: Herman Name: ShenZhen KaCe Technology Co.,Ltd. Address: Shenzhen.China Web: www.kaemeasu.com E-mail: Jerry@kaemeasu.com
