Name: Multi-function Pocket Digital Multimeter Electrician Universal Meter High Precision DC/AC NCV True RMS Multimeters Tester
Brand: Shenzhen Kace Technology Co., Ltd.
SKU: KM-DM05
Price: 52.00 USD
Availability: InStock

Home > products > Multimeter Tester >

Multi-function Pocket Digital Multimeter Electrician Universal Meter High Precision DC/AC NCV True RMS Multimeters Tester

High Precision Pocket Digital Multimeter

Electrician Universal Pocket Digital Multimeter

Multi-function Pocket Digital Multimeter

Place of Origin:

Guangdong, China

Brand Name:

kaemeasu

Model Number:

KM-DM05

Request A Quote

Multi-function Pocket Digital Multimeter Electrician Universal Meter High Precision DC/AC NCV True RMS Multimeters Tester

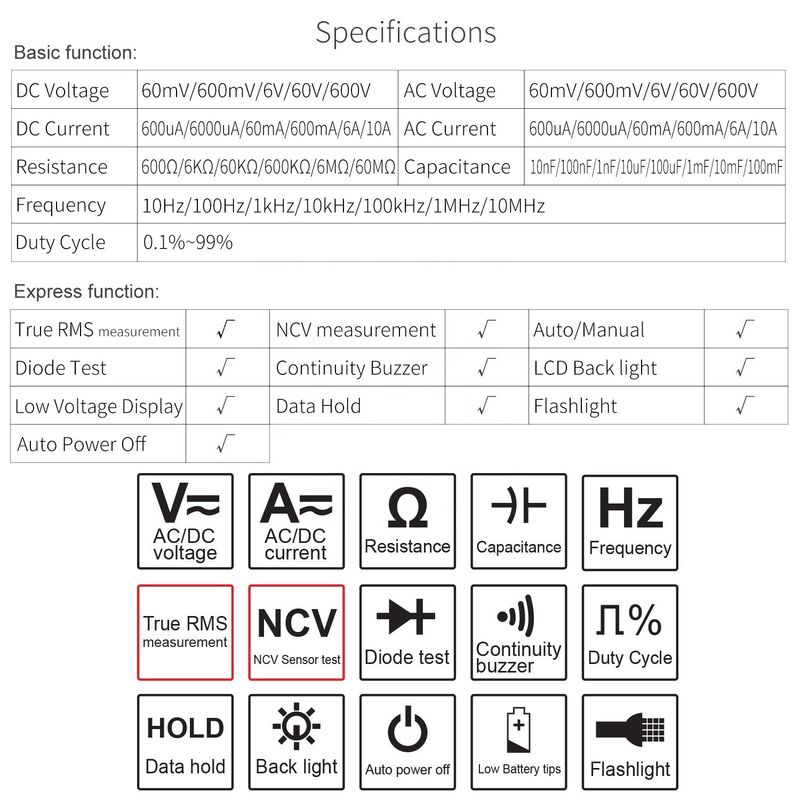

Product Details

Measuring Current Range:

600uA/6000uA/60mA/600mA/6A/10A

Measuring Voltage Range:

60mV/600mV/6V/60V/600V

Measuring Resistance Range:

600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ

Measuring Capacitance Range:

10nF/100nF/1nF/10uF/100uF/1mF/10mF/100mF

Measuring Inductance Range:

Operating Temperature:

0-40℃

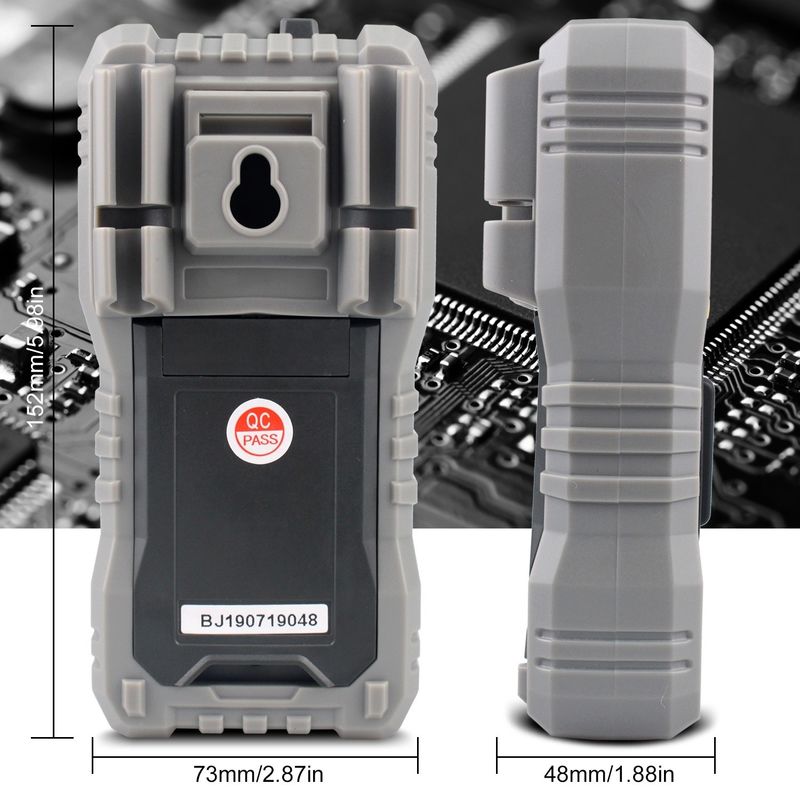

Dimensions:

152*73*48mm

Feature:

Standard, Dustproof, Waterproof

Max. AC Voltage:

600 V

Max. DC Voltage:

600 V

Max. AC Current:

10A

Max. DC Current:

10A

Parameters Measured:

DC Current, AC Voltage, Frequency, Temperature, DC Voltage, Duty Cycle, Capacitance, Continuity, Diode, Resistance, AC Current

Low Battery Indicator:

Yes

Certificate:

CE/RoHS/FCC

Power Supply:

2*1.5V AAA Batteries

Package:

Box

Payment & Shipping Terms

Minimum Order Quantity

30 pieces

Price

CN¥42.00-62.28/pieces

kaemesau Insulation Resistance Tester 1000V 2500V Overload Protection Digital Insulation Resistance Tester IR10B

Get Best Price

kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A

Get Best Price

Video

Kaemeasu 10C Auto Range Multimetro Smart Digita Voltage Meters NCV TRMS Diode Test Current Resistance Tester

Get Best Price

Video

Kaemeasu 10D Smart Rotary Knob Multimeter Voltage Meters Detector Multimetro Smart Multimeter Digital Multimeters

Get Best Price

+86 13316431028

jerry@kaemeasu.com

Contact Now

Product Description

Customization Service

1. Send us logo or design file, we'll make effect picture for confirmation.

2. Sample production and confirmation.

3. Sample delivery and confirmation.

4. Mass production.

5. Finished product delivery.

Product Description

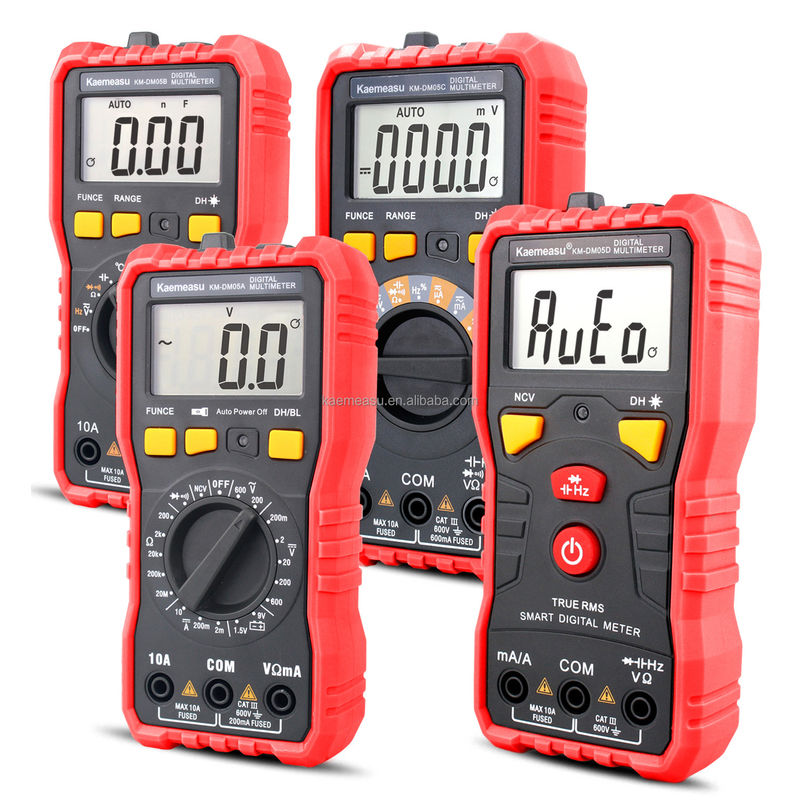

	KM-DM05A	KM-DM05B	KM-DM05C	KM-DM05D
Display	2000	2000	6000	6000
Range Select	Manual	AUTO	AUTO	AUTO
Diode Test	√	√	√	√
Continuity Buzzer	√	√	√	√
NCV	√	√	√	√
Flashlight Lighting	√	√	√	√
Backlight	√	√	√	√
Data Hold	√	√	√	√
Battery Low Voltage Reminder	√	√	√	√
Auto Power Off	√	√	√	√
Battery Voltage Measurement	√
Temperature Test		√
Smart Measurement				√
True RMS		√	√	√

	KM-DM05A	KM-DM05B	KM-DM05C	KM-DM05D
DC Voltage(V)	200mV~600V	200mV~600V	60mV~600V	6V~600V
AC Voltage(V)	200V~600V	2V~600V	60mV~600V	6V~600V
DC Current(A)	2mA~10A	200uA~10A	600uA~10A	1A~10A
AC Current(A)		200uA~10A	600uA~10A	1A~10A
Resistance(Ω)	200Ω~20MΩ	200Ω~20MΩ	600Ω~60MΩ	600Ω~60MΩ
Capacitance(F)		2nF~2mF	10nF~100mF	10nF~100mF
Frequency(Hz)		200Hz~20MHz	10Hz~10MHz	100Hz~1MHz

Packing and Logistics

Package Information
Product Size/Weight	*1527348mm / 209g*
Package Size/Weight	*1610.56cm / 0.33kg*
Carton Information	*60 pcs/carton / 57.53233cm / 22kg*
Power Supply	2pcs 1.5V(AAA) battery

Company and Production Line

Shenzhen Kace Technology Co., Ltd. is a high-tech enterprise integrating R & D, production and sales services. Occupying an important position in the global measurement industry, the company is committed to providing more accurate, convenient and safer digital measurement instruments, meters and service support for global users.

Have a complete and scientific quality management system. Shenzhen Kace Technology Co., Ltd. has been recognized by the industry for its integrity, strength and product quality. Welcome friends from all walks of life to visit, guide and negotiate business.

Exhibition

Market Distribution

FAQ

1.Q： Leading time for order? A：1-3 days for sample order, 5-10 days for bulk order 2.Q： Shipment information? A：Sample is shipped by UPS, DHL. Fedex,etc, takes 3-5 days. Bulk order can be shipped by air or by sea. 3.Q： What's your MOQ? A：Without logo: No MOQ limited With logo: 300pcs. 4. Q：For Amazon seller. A：We can ship to amazon warehouse directly, only need offer us Amazon lables, will handle all things. 5. Q：What is your product warranty? A：1 year warranty, longer than most of factories in China 6. Q：What is your defective rate? A：We are offering full inspection, and our defective rate under 0.1% 7.Q： How to do if there is product broken? A：Just send us video or photos, will make replacement in your next shipment. 8.Q： OEM/ODM service A：We support to customize logo, color, manual, packing, ect. 9. Q：What kind of Power adapter you can offer? A：UK, Australia, European and American power adapters are available.

Buying Guidance: if you need more information,please contact me without hesitate! Contact: Herman TEL: 0086-0755-21031418 Mob / Whats app / Wechat:+86-15507517286 Skype/Vk: Herman Name: ShenZhen KaCe Technology Co.,Ltd. Address: Shenzhen.China Web: www.kaemeasu.com E-mail: Jerry@kaemeasu.com
