Name: Big Clamp Multimeter T-RMS AC DC 1000V 1000A Diode Test Continuity Buzzer Digital Clamp Meters
Brand: Shenzhen Kace Technology Co., Ltd.
SKU: KM-902/903
Price: 210.89 USD
Availability: InStock

Home > products > Multimeter Tester >

Big Clamp Multimeter T-RMS AC DC 1000V 1000A Diode Test Continuity Buzzer Digital Clamp Meters

1000A Clamp Meter

Big Clamp Multimeter

1000V Clamp Meter

Place of Origin:

Guangdong, China

Brand Name:

kaemeasu

Model Number:

KM-902/903

Request A Quote

Big Clamp Multimeter T-RMS AC DC 1000V 1000A Diode Test Continuity Buzzer Digital Clamp Meters

Product Details

Display Type:

Digital Only

Measuring Current Range:

1000A

Measuring Voltage Range:

1000V

Measuring Resistance Range:

60MΩ

Measuring Capacitance Range:

6000uF

Measuring Inductance Range:

Operating Temperature:

0-40℃

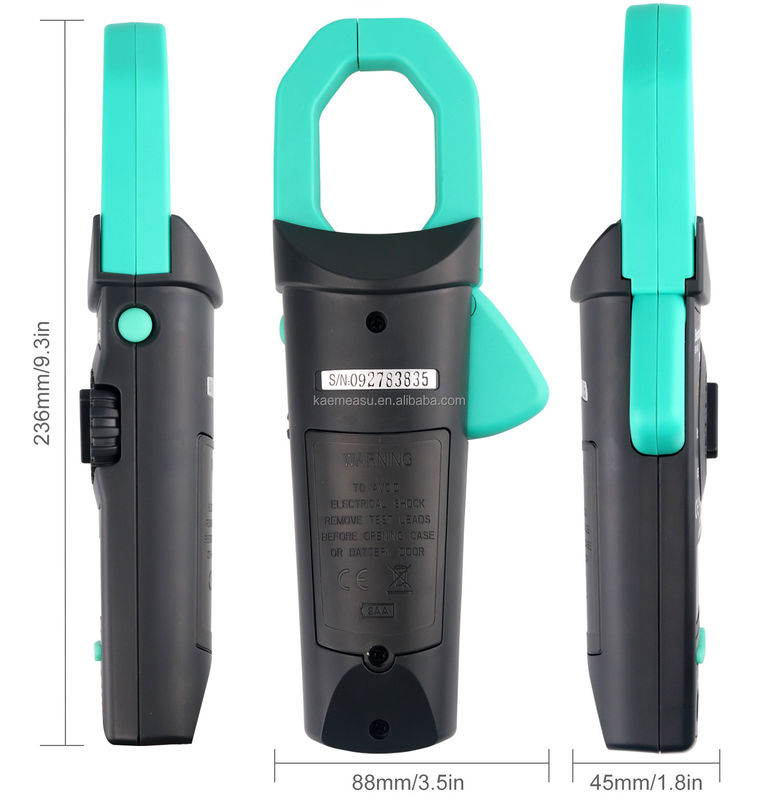

Dimensions:

236*88*45mm

Weight:

325g

Max. AC Voltage:

750V

Max. DC Voltage:

1000 V

Max. AC Current:

1000 A

Max. DC Current:

1000 A

Parameters Measured:

DC Current, AC Voltage, DC Voltage, AC Current

Certificate:

CE/RoHS/FCC

Warranty:

1 Year

Material:

ABS+Electric Parts

Payment & Shipping Terms

Price

CN¥170.89-251.27/pieces

kaemesau Insulation Resistance Tester 1000V 2500V Overload Protection Digital Insulation Resistance Tester IR10B

Get Best Price

kaemesau 1999 Count Display Insulation Resistance Tester 250V 500 V 1000 V Overload Protection Digital Insulation Resistance Tester IR10A

Get Best Price

Video

Kaemeasu 10C Auto Range Multimetro Smart Digita Voltage Meters NCV TRMS Diode Test Current Resistance Tester

Get Best Price

Video

Kaemeasu 10D Smart Rotary Knob Multimeter Voltage Meters Detector Multimetro Smart Multimeter Digital Multimeters

Get Best Price

+86 13316431028

jerry@kaemeasu.com

Contact Now

Product Description

Customization Service

1. Send us logo or design file, we'll make effect picture for confirmation.

2. Sample production and confirmation.

3. Sample delivery and confirmation.

4. Mass production.

5. Finished product delivery.

Product Description

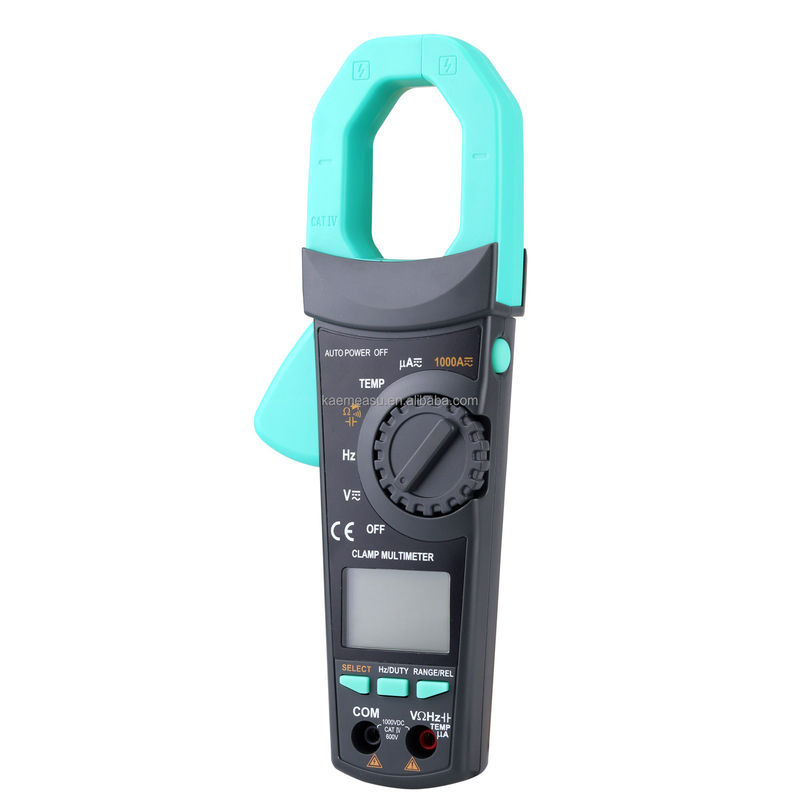

Digital Clamp Meter

Model	KM-902	KM-903
Basic Function	Range	Range	Accuracy
DC Voltage(V)	600mV/6V/60V/600V/1000V	600mV/6V/60V/600V/1000V	±（0.5%+3）
AC Voltage(V)	600mV/6V/60V/600V/750V	600mV/6V/60V/600V/750V	±（0.8%+5）
DC Current(A)	600uA/6000uA	600uA/6000uA	±（0.8%+10）
DC Current(A)			60A/600A/1000A	±（2.0%+30）
AC Current(A)	600uA/6000uA	600uA/6000uA	±（1.0%+8）
AC Current(A)		600A/1000A	60A/600A/1000A	±（2.0%+30）
Resistance(Ω)	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±（0.8%+5）
Capacitance(F)	99.99nF/999.9nF/9.999uF/99.99uF/999.9uF	99.99nF/999.9nF/9.999uF/99.99uF/999.9uF	±（2.5%+60）
Capacitance(F)		9.999mF	9.999mF	±（5.0%+10）
Frequency(Hz)	10Hz~60MHz	10Hz~60MHz	±（0.01%+5）
Temperature(℃/℉)	-20~1000℃ / -4~1832℉	-20~1000℃ / -4~1832℉	±（1.2%+3）
Duty Cycle	0.1%~99%	0.1%~99%

Model	KM-902	KM-903
Display	5999	5999
Range Select	Manual / AUTO	Manual / AUTO
True RMS Measurement	√	√
Continuity Buzzer	√	√
Diode Test	√	√
NCV	√	√
Relative Measurement		√
Data Hold	√	√
Backlight Manual/Automatic Shutdown	√	√
Battery low voltage reminder	√	√
Auto Power Off	√	√

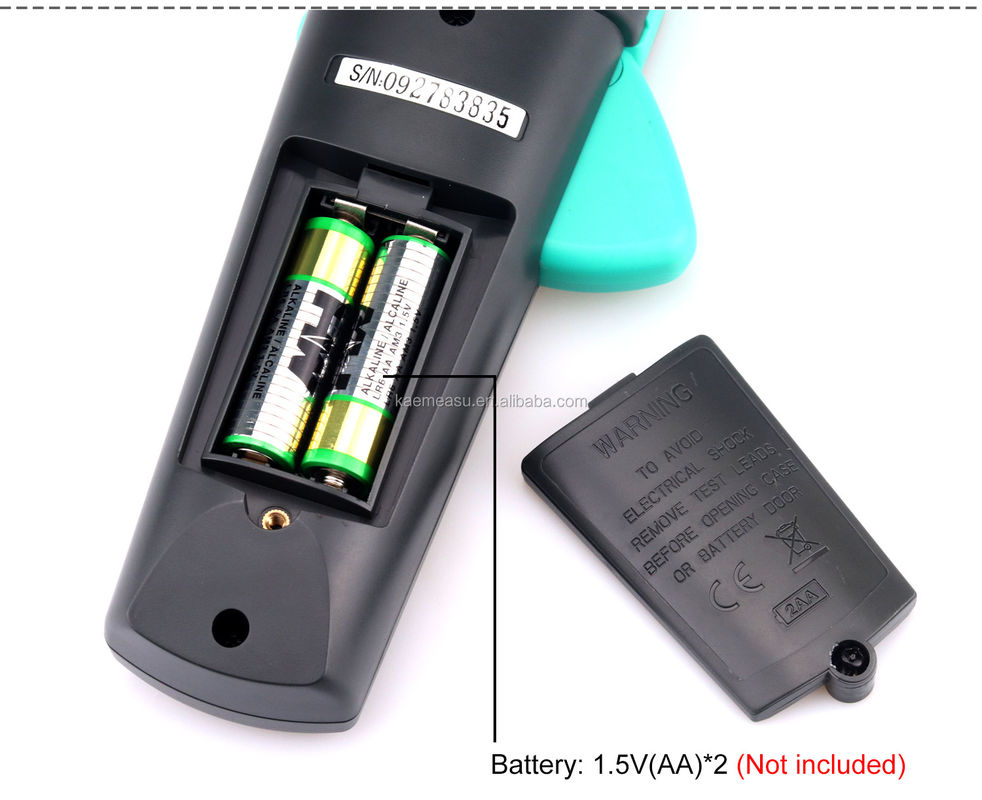

Power Supply	*9V(6F22) battery1**
Size of Product/Package	*2368845mm/2713.56.5cm*
Weight of Product/Package	325g/620g
Carton Information	*30 pcs/carton-56.530.541cm-22kg*

Company and Production Line

Shenzhen Kace Technology Co., Ltd. is a high-tech enterprise integrating R & D, production and sales services. Occupying an important position in the global measurement industry, the company is committed to providing more accurate, convenient and safer digital measurement instruments, meters and service support for global users.

Have a complete and scientific quality management system. Shenzhen Kace Technology Co., Ltd. has been recognized by the industry for its integrity, strength and product quality. Welcome friends from all walks of life to visit, guide and negotiate business.

Exhibition

Market Distribution

FAQ

1.Q： Leading time for order? A：1-3 days for sample order, 5-10 days for bulk order 2.Q： Shipment information? A：Sample is shipped by UPS, DHL. Fedex,etc, takes 3-5 days. Bulk order can be shipped by air or by sea. 3.Q： What's your MOQ? A：Without logo: No MOQ limited With logo: 300pcs. 4. Q：For Amazon seller. A：We can ship to amazon warehouse directly, only need offer us Amazon lables, will handle all things. 5. Q：What is your product warranty? A：1 year warranty, longer than most of factories in China 6. Q：What is your defective rate? A：We are offering full inspection, and our defective rate under 0.1% 7.Q： How to do if there is product broken? A：Just send us video or photos, will make replacement in your next shipment. 8.Q： OEM/ODM service A：We support to customize logo, color, manual, packing, ect. 9. Q：What kind of Power adapter you can offer? A：UK, Australia, European and American power adapters are available.

Buying Guidance: if you need more information,please contact me without hesitate! Contact: Herman TEL: 0086-0755-21031418 Mob / Whats app / Wechat:+86-15507517286 Skype/Vk: Herman Name: ShenZhen KaCe Technology Co.,Ltd. Address: Shenzhen.China Web: www.kaemeasu.com E-mail: Jerry@kaemeasu.com
